Power

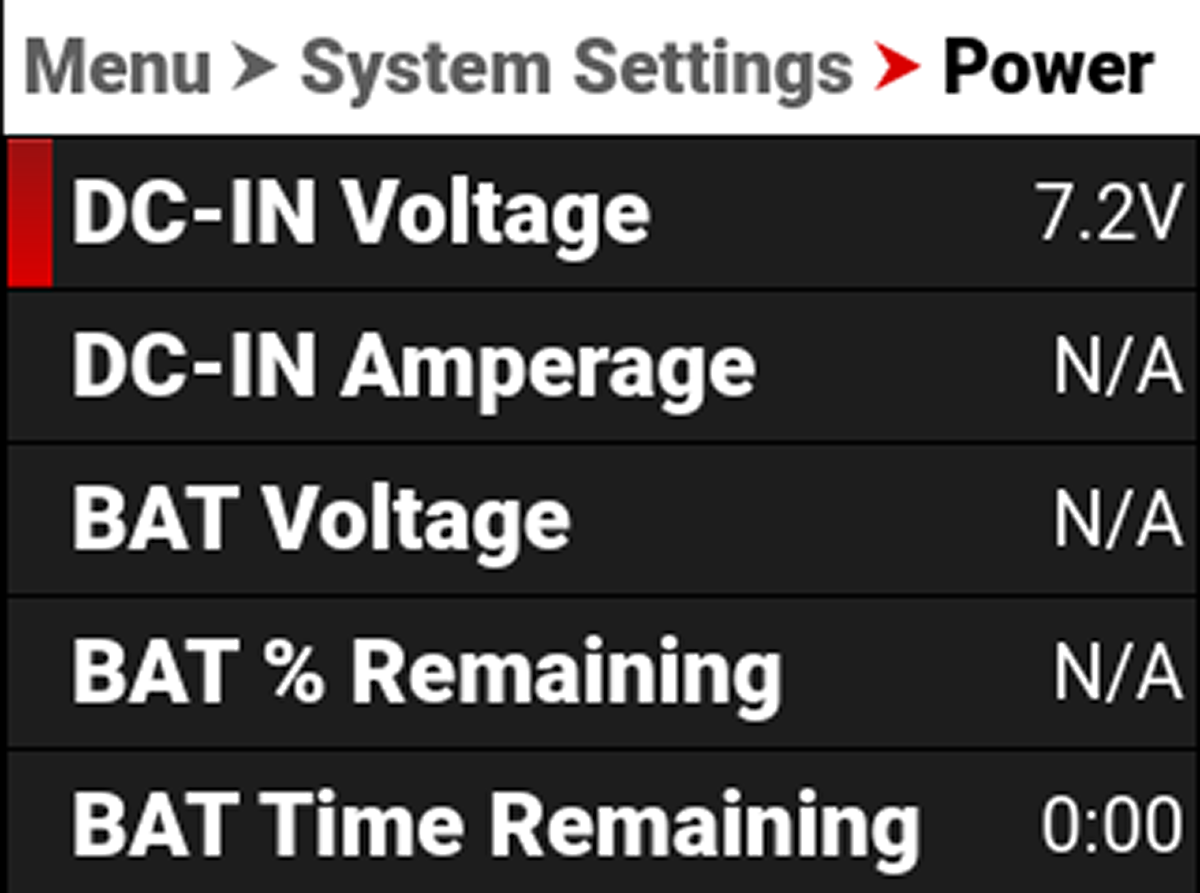

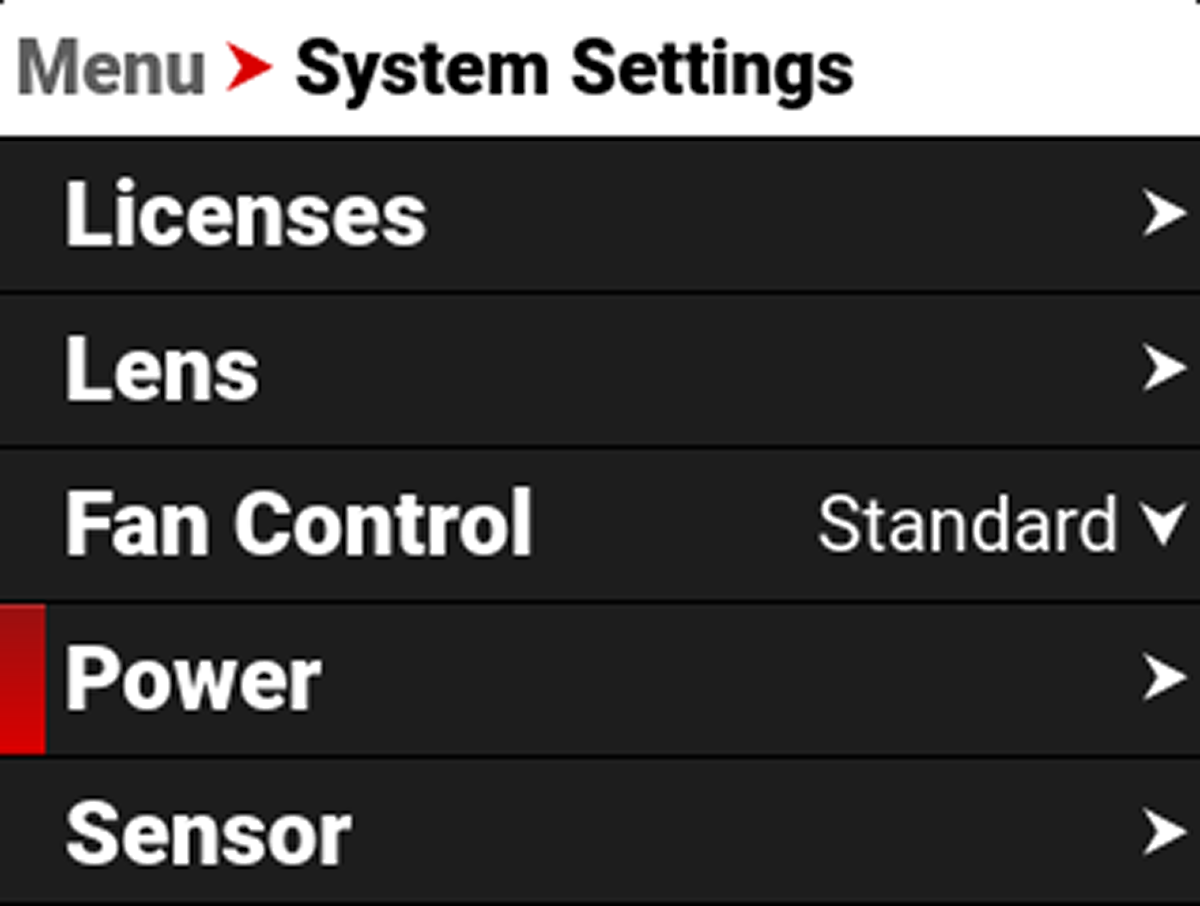

Use the Power menu to view the various camera power status indicators.
The Power indicators you can view include:
|
Item |
Details |
|---|---|
|
DC-IN Voltage |
When DC is connected, this displays the DC voltage |
|
DC-IN Amperage |
When DC is connected, this displays the DC amps |
|
BAT Voltage |
When a battery is connected, this displays the battery voltage |
|
BAT % Remaining |
When a compatible battery is connected, this displays the % of battery charge remaining |
|
BAT Time Remaining |
When a battery is connected, this displays the camera operating time remaining |
|
BAT Amperage |
When a battery is connected, this displays the battery amps |
|
Power Out |
Enables or disables the 5 V / 500 mA power to the Extension Port |
